Sygnis TruePrime™ Single Cell WGA Kit version 2.0

 เพิ่มเมื่อ: 2016-12-21 14:09:07.0
 แก้ไขล่าสุด: 2016-12-21 14:11:08.0

รายละเอียด:
Sygnis TruePrime™ Single Cell WGA Kit version 2.0
  • detail Single cell whole genome amplification (WGA) with less bias making this kit ideally suited for next generation sequencing applications. - High sensitivity: Typical yield is greater than 5 µg when starting with a single mammalian cell. - Reduced amplification bias and no primer artefacts: Primer-free amplification method utilizes a combination of TthPrimPol Primase (to synthesize primers) and Phi29 DNA polymerase. - Well suited for next generation sequencing: Tested in Illumina and Ion Torrent NGS workflows. - Easy and reliable - Insensitive to external DNA contamination
  • descriptionA single cell whole genome amplification kit based on a revolutionary multiple displacement amplification method that combines of the recently discovered DNA primase “TthPrimPol” and the extremely processive and high-fidelity Phi29 DNA polymerase to uniformly amplify genomic DNA from individual cells.
ไม่ระบุราคา



    Single cell whole genome amplification (WGA) with less bias making this kit ideally suited for next generation sequencing applications.

- High sensitivity: Typical yield is greater than 5 µg when starting with a single mammalian cell.
- Reduced amplification bias and no primer artefacts: Primer-free amplification method utilizes a combination of TthPrimPol Primase (to synthesize primers) and Phi29 DNA polymerase.
- Well suited for next generation sequencing: Tested in Illumina and Ion Torrent NGS workflows.
- Easy and reliable
- Insensitive to external DNA contamination

 สินค้าที่เกี่ยวข้อง

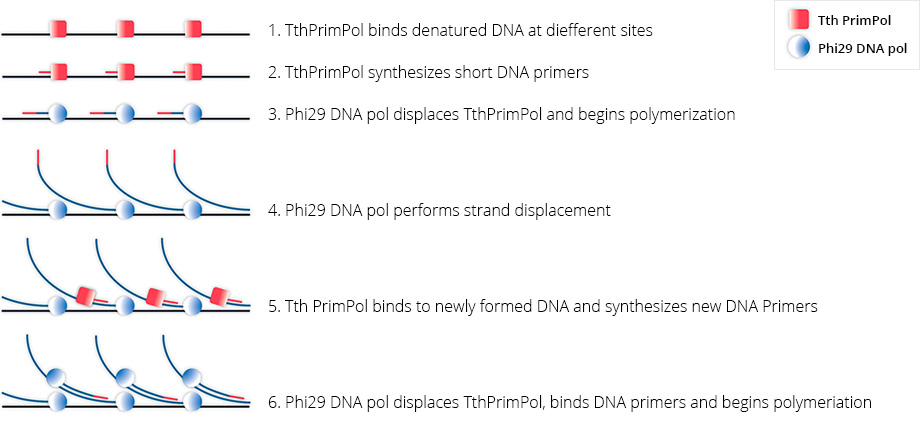

How does TruePrime™ Technology work?

Whole genome amplification from 5 cells

Absence of primer artefacts

1 pg of human genomic DNA (~ 1/6 of the content of one human/mammalian cell) has been amplified using either TruePrime™ (TthPrimPol-based MDA) or random primed MDA reactions. Random primed reactions contain 20% of sequences that cannot be mapped to any organism in sequence databases.

Insensitivity to external DNA contaminations

Due to the high sensitivity of single cell whole genome amplification techniques there is a considerable danger of contaminating reactions with non-target derived DNA. We therefore recommend to take extreme care when setting up single cell amplification reactions as laid out in the handbook. However, TruePrime™ users have a unique advantage here: TruePrime™ does not accept non-denatured DNA strands as template as readily as random primed MDA reactions. Therefore, contaminations coming in from the environment etc. after the denaturation step will not have a strong influence on the composition of your reaction output. We have shown this behaviour in an experiment where we simulate an external DNA contamination by deliberately adding in yeast DNA to a denatured human DNA template. Yeast DNA is in a thousand-fold excess over the target DNA (1 pg human genomic DNA):





Whereas with TruePrime™ the vast majority of the sequences obtained are target-derived, random primed MDA shows a majority of contaminant-derived sequences.

Excellent genome coverage

We have amplified and sequenced the yeast genome using TruePrime™ and Illumina technology. Using 2.5 million read pairs we cover 99.4% of the total yeast genome. Shown is the coverage with narrow width of the distribution curve.



A coverage graph of yeast chromosome 7 exemplifies the more even coverage obtained by TruePrime™ MDA (middle blue line represents mean coverage).

Order Information

Each TruePrime™ Single Cell WGA Kit version 2.0 contains: Buffer L1, DTT, Buffer N, Reaction Buffer, dNTPs, Water, Enzyme 1, Enzyme 2, Control 1, and Control 2. The complete manual is available under the Manual tab. Lucigen is an authorized distributor of Sygnis products in the US.

TruePrime™ Single Cell WGA version 2.0 kit is intended for molecular biology use only and in vitro use only. This product is not intended for diagnosis, prevention or treatment of a disease in human beings or animals.

Technical Specifications:

Typical DNA yields from a TruePrime™ Single Cell WGA kit version 2.0 reaction are about 5 µg per 50 µl reaction when starting from one or a few cells. Yields and kinetics will vary if crude or un-quantified samples are amplified. Reactions without input DNA (no template controls) do not produce any amplification product during a 3 hour reaction. Mean product length is greater than 10 kb.

Quality Control:

Each batch of a TruePrime™ Single Cell WGA Kit version 2.0 is tested against predetermined specifications to ensure consistent product quality. Enzymes used in the kit have been tested separately to ensure adherence to specifications.

Shipping and Storage:

Kits are shipped on dry ice. Upon receipt, the kit should be stored immediately at -20°C in a non-frost-free (constant-temperature) freezer. When stored under these conditions and handled correctly, the products can be kept at least six months after shipping without showing any reduction in performance. For longer periods of time, store the kit at -80°C.

Manual

File Name Manual
Sygnis-TruePrime-Single-Cell-WGA-Handbook PDF



Resource

Sygnis-TruePrime™-Single-Cell-WGA-kit-MSDS.pdf
